Descripción

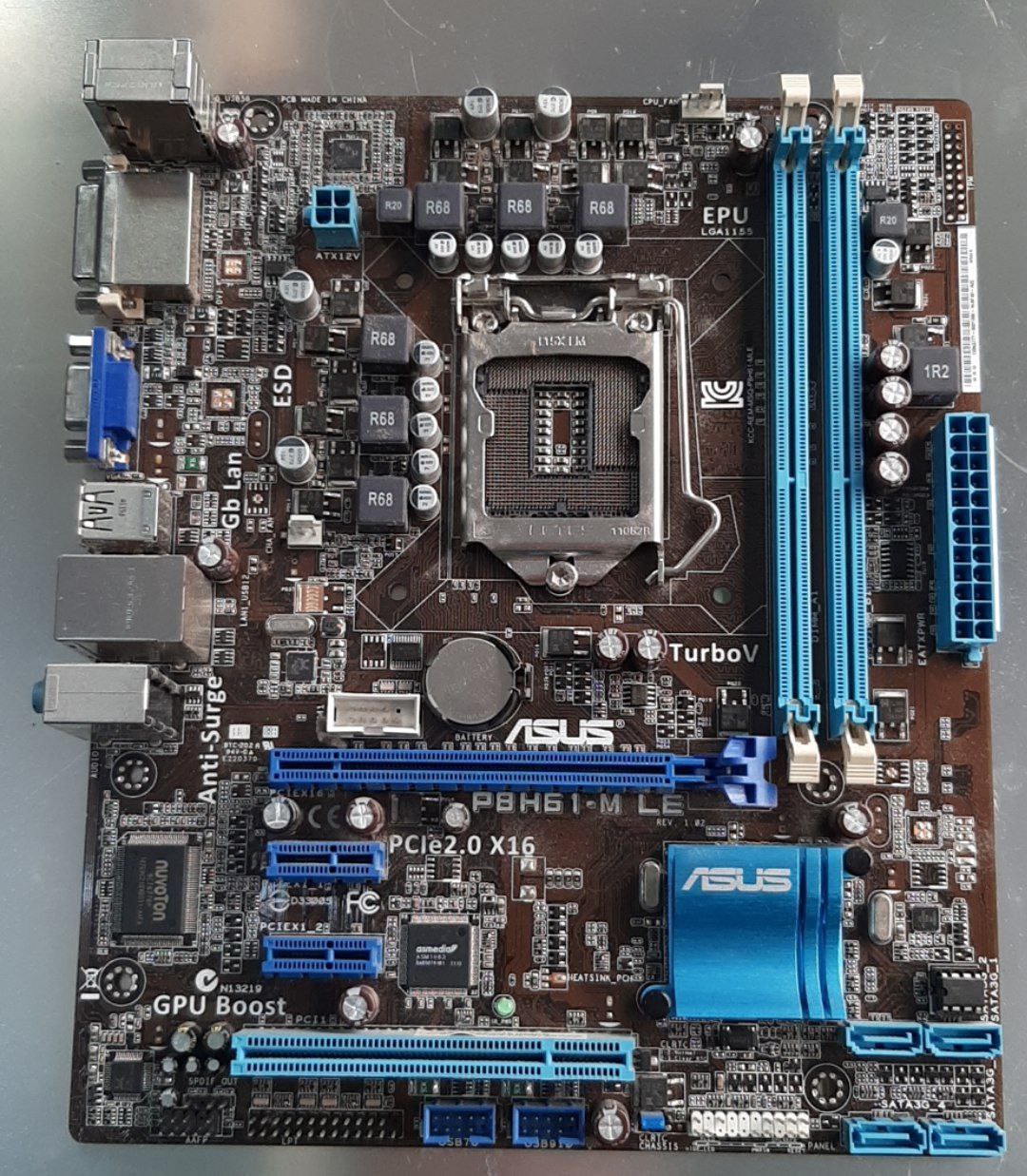

Placa base ASUS PBH61-M LE
CPU Intel Socket 1155 for 2nd Generation Core i7 / Core i5 / Core i3 processors
Supports Intel 32 nm CPU Supports Intel Turbo Boost Technology 2.0
The Intel Turbo Boost Technology 2.0 support depends on the CPU types
Chipset Intel H61 (B3)
Memory 2 x DIMM, Max. 16GB, DDR3 1333/1066MHz Non-ECC, Un-buffered memory
Dual channel memory architecture The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market
Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard
Graphics Integrated graphics processor
Multi-VGA output support: DVI/RGB ports
Supports DVI with max. resolution 1920 x 1200 @ 60Hz
Supports RGB with max. resolution 2048 x 1536 @ 75Hz Supports DirectX 10.1
Expansion Slots 1 x PCIe 2.0 x16 2 x PCIe 2.0 x1 1 x PCI
Storage Intel H61 (B3) chipset: 4 x SATA 3Gbps ports, blue
LAN Realtek 8111E , 1 x Gigabit LAN Controller
Audio Realtek ALC 887 8-channel high definition audio codec
Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
USB Intel H61 (B3) chipset: 10 x USB 2.0 ports (6 at back panel, black, 4 at mid-board)

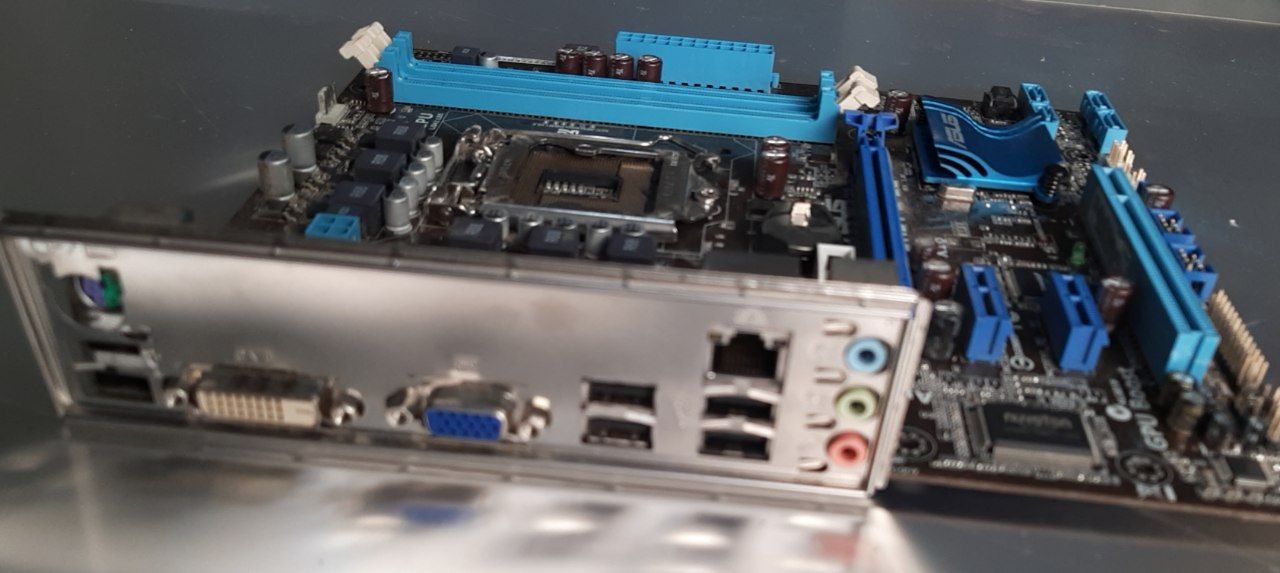

Back I/O Ports 1 x PS/2 keyboard / mouse combo port
1 x DVI 1 x D-sub
1 x LAN (RJ-45) port
6 x USB 2.0
3 x audio jacks
Internal I/O Ports
2 x USB 2.0 connectors (Supports an additional 4 USB 2.0 ports)
1 x COM port connector
4 x SATA 3Gbps connectors
1 x CPU fan connector
1 x chassis fan connector
1 x S/PDIF out header
1 x 24-pin EATX power connector
1 x 4-pin ATX 12V power connector
1 x parallel port connector
1 x front panel audio connector (AAFP)
1 x system panel
BIOS
32MB Flash ROM EFI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SM BIOS v2.6, multi-language BIOS
Form Factor uATX form factor
Dimensions 9.6 x 8″ (24.4 x 20.3 cm)
