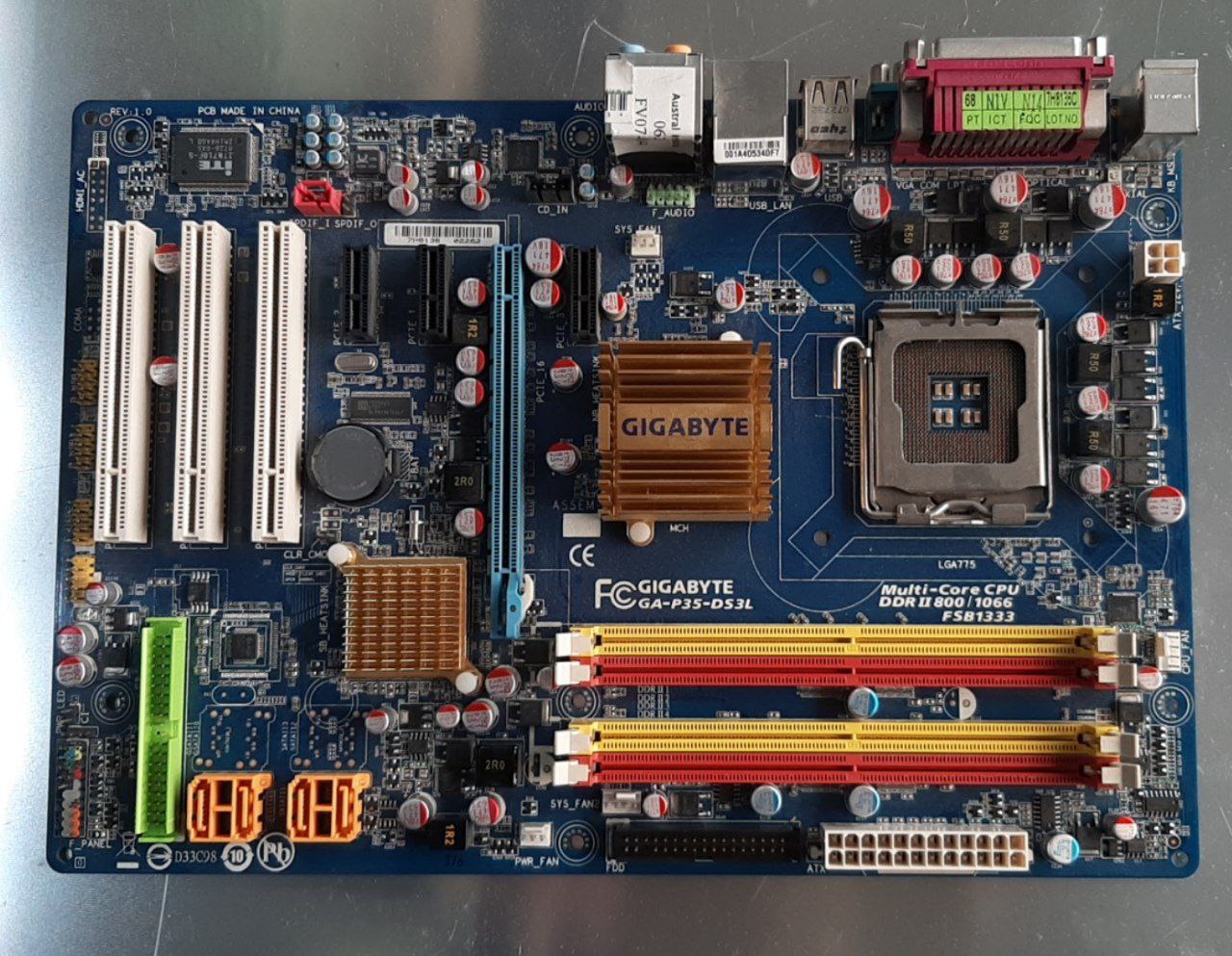

Descripción
Procesador:
Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme/ Intel® Pentium® D processors
Supports1333/1066/800 MHz FSB
Chipset:
Northbridge: Intel® P35 Express Chipset
Southbridge: Intel® ICH9
Gigabit Lan Controller
8 Channels ALC888 Audio controller
Memoria:
Supports DDR2 1066*/800/667memory
Dual Channel architecture supports up to 8GB by 4 DIMM slots
Puertos de Expansión:
1 PCI Express X16 slot
3 PCI Express X1 slots
3 PCI slots
Conectores Internos de E/S:
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF out connector
3 x USB 2.0/1.1 headers (supports 6 ports)
1 x chassis intrusion header
1 x power LED header
Conectores del Panel Trasero:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
1 x serial port
6 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
BIOS:
Supports Virtual DualBIOS
1 x 8 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Características Únicas:
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU fan speed control
Diseño:
ATX form factor, 305 x 210mm
Otras Características
Ultra Durable Motherboard
Over-clocking Enhanced
