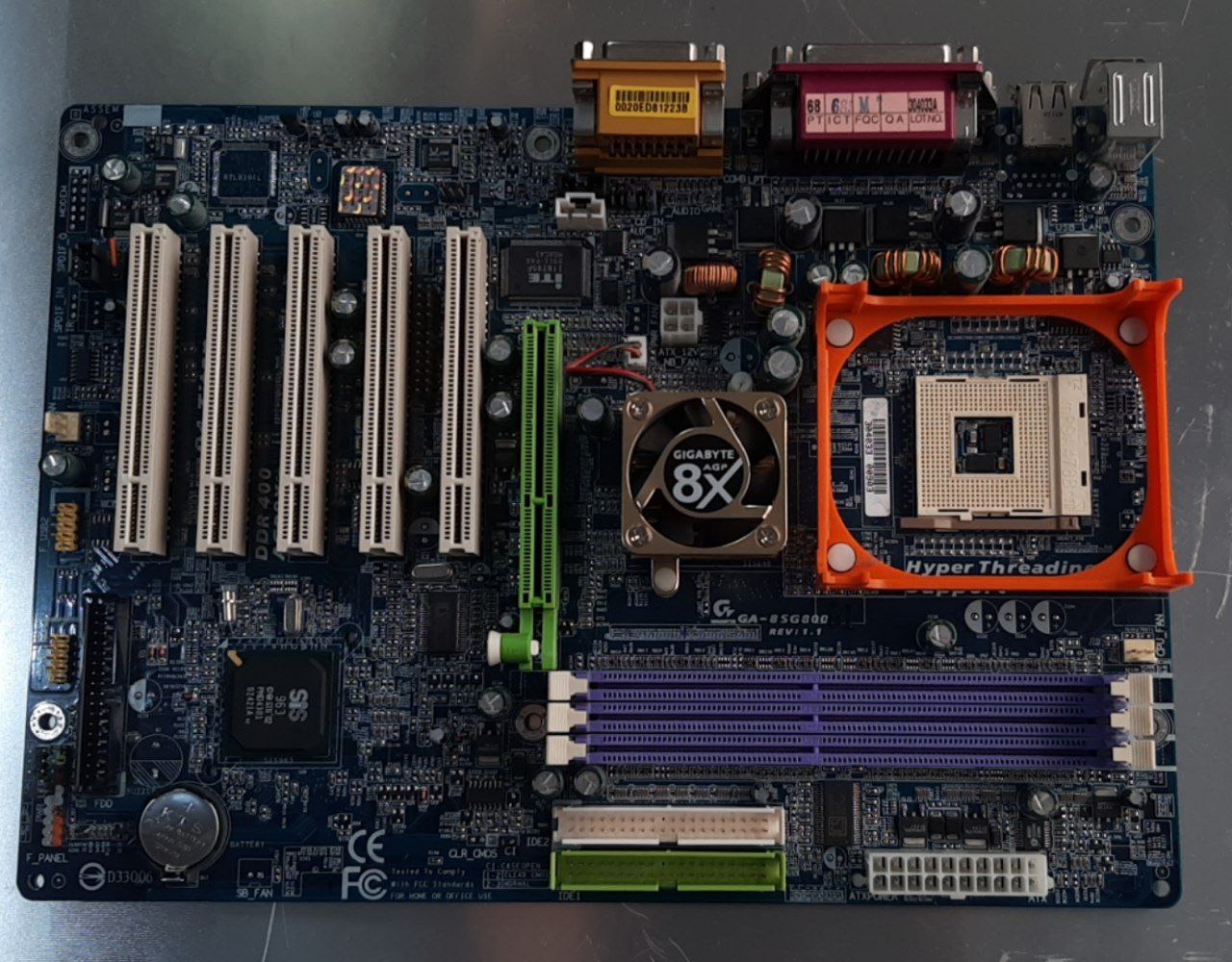

Descripción

Procesador:
Socket 478 for Intel® new 0.13 micron-process Pentium® 4 processor
533/400 MHz FSB
Chipset:
Northbridge: SiS648 HMAC Host & Memory & AGP Controller
Southbridge: SiS963 MuTIOL® Media I/O
Super I/O: ITE 8705 chip
REALTEK ALC650 codec chip
Memoria:
Type:DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
Max capacity: Up to 3GB DDR266 by 3 DIMM slots or up to 2GB DDR333 by 2 DIMM slots
Zócalos de Expansión:
1 x AGP slot (8x/4x, AGP 3.0 compliant), supports 1.5v display card only.
5 x PCI slots (PCI 2.2 compliant)
Conectores Internos E/S:
2 x UDMA ATA 133/100/66 Bus Master IDE ports
2 x USB 2.0/1.1 connectors (4 ports by cable)
1 x FDD port
S/P DIF output connector (by optional cable)
1394 pin header (support 3 ports via daughter card S1394, Optional)
Panel E/S Trasero:
PS/2 Keyboard / Mouse
2 x USB 2.0/1.1 ports
Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
2 x COM ports
1 x Game/Midi port
Monitorización Hardware:
System health status auto-detect and report by BIOS
Hardware detecting and reporting for case open,power-in voltage,CPU voltage, and fan speed
BIOS:
2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
Bundled Software:
Easy Tune™ 4, @BIOS™, Q-Flash™, GMC™
Norton Internet Security
Norton Anti Virus™
Norton™ Personal Firewall
Norton™ Privacy Control
Norton™ Parental Control
Ad Control
GIGABYTE Windows Utility Manager
Formato:
ATX form factor, 4 layers PCB (30.4 x 20.0)
CPU/AGP/DIMM setting
CPU FSB adjustable (1MHz-linear) via BIOS
Multiplier adjustable via BIOS
AGP/ DRAM Clock adjustable via BIOS
Driver:
SiS 648 AGP driver
REALTEK Sound driver
SiS USB 2.0 driver
Other Features
– Suspend to RAM (STR)
Supports USB KB / MS wake up from S3
Poly fuse for keyboard over-current protection
Power:
ATX power connector and ATX 12V connector
Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
