Tarjeta Gráfica PCI 3DFX Interactive Voodoo5 5500 64Mb 210-0414-001-A1 Reacondicionado
750,00 € IVA Incluido
3DFX
1 disponibles
Categoría: Ordenadores y servidores
Reportar abuso
Descripción

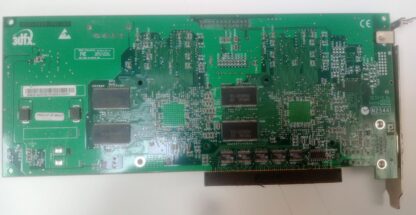

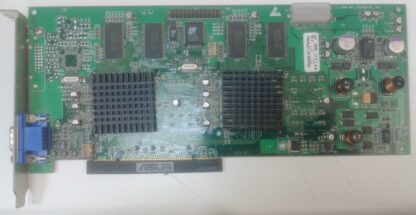

Tarjeta Gráfica 3DFX Interactive 210-0414-001-A1 Reacondicionado
The Voodoo5 5500 PCI was a performance-segment graphics card by 3dfx, launched on June 22nd, 2000. Built on the 250 nm process, and based on the VSA-100 graphics processor, in its Napalm 26-320 variant, the card supports DirectX 6.0. Since Voodoo5 5500 PCI does not support DirectX 11 or DirectX 12, it might not be able to run all the latest games. The VSA-100 graphics processor is an average sized chip with a die area of 112 mm² and 14 million transistors. Voodoo5 5500 PCI combines two graphics processors to increase performance. It features 2 pixel shaders and 0 vertex shaders, 2 texture mapping units, and 2 ROPs, per GPU. Due to the lack of unified shaders you will not be able to run recent games at all (which require unified shader/DX10+ support). 3dfx has paired 64 MB SDR memory with the Voodoo5 5500 PCI, which are connected using a 128-bit memory interface per GPU (each GPU manages 32 MB). The GPU is operating at a frequency of 166 MHz, memory is running at 166 MHz.
Being a single-slot card, the 3dfx Voodoo5 5500 PCI draws power from 1x Molex power connector, with power draw rated at 30 W maximum. Display outputs include: 1x VGA. Voodoo5 5500 PCI is connected to the rest of the system using a PCI interface. Its price at launch was 299 US Dollars.
Being a single-slot card, the 3dfx Voodoo5 5500 PCI draws power from 1x Molex power connector, with power draw rated at 30 W maximum. Display outputs include: 1x VGA. Voodoo5 5500 PCI is connected to the rest of the system using a PCI interface. Its price at launch was 299 US Dollars.
Graphics Processor
- GPU Name
- VSA-100
- GPU Variant
- Napalm 26-320
(355-0026-320)
- Architecture
- Voodoo Scalable
- Foundry
- TSMC
- Process Size
- 250 nm
- Transistors
- 14 million
- Density
- 125.0K / mm²
- Die Size
- 112 mm²
Graphics Card
Clock Speeds
- GPU Clock
- 166 MHz
- Memory Clock
- 166 MHz
Memory
- Memory Size
- 32 MB
- Memory Type
- SDR
- Memory Bus
- 128 bit
- Bandwidth
- 2.656 GB/s
Render Config
- Pixel Shaders
- 2
- Vertex Shaders
- 0
- TMUs
- 2
- ROPs
- 2
Theoretical Performance
- Pixel Rate
- 332.0 MPixel/s
- Texture Rate
- 332.0 MTexel/s
Board Design
- Slot Width
- Single-slot
- TDP
- 30 W
- Suggested PSU
- 200 W
- Outputs
- 1x VGA
- Power Connectors
- 1x Molex
- Board Number
- 210-0414-001-A1
Graphics Features
- DirectX
- 6.0
- OpenGL
- 1.1
- OpenCL
- N/A
- Vulkan
- N/A
- Pixel Shader
- N/A
- Vertex Shader
- N/A
Importante:
En los circuitos electrónicos y placas electrónicas no se aceptan devoluciones ni cambios, ni por equivocación en el modelo, ni por avería en ellas.
Un mal montaje puede averiarlas, asegurarse que el modelo de TV corresponde y que todas las referencias son iguales, si necesitas ayuda o tienes duda, no lo compres, mándanos un email a info@grupointercom.info , intentaremos ayudarte.
Todos los circuitos proceden de televisores usados o nuevos con placas funcionando, con la avería de panel LCD roto, o con otras placas rotas.
El circuito que vendemos está comprobado y funciona 100%. Si tienes dudas respecto a si la placa es de 2da mano o nueva, mándanos un mensaje antes de comprar.
